Doppo Racer Limited Edition Frame & Fork Set & Chris King Headset ( Free Shipping )

$2,500.00

Only 2 sizes are available.

Doppo RACER
SimWorks Racing Team Model

The Doppo by Simworks Racer frameset, which began development as the second in line in the Doppo series, was originally created 3 years ago. Built with the same ethos as it’s sibling the ATB, this racer is “walking alone” to the beat of a different drum.

In response to the specific demands of competition cyclists, Doppo Racer is ready to be unveiled- the product of countless hours of input and feedback from our Simworks Racing Team.

The SimWorks Racing Team’s continued success in cyclocross series has been gaining attention, alongside the SimWorks brand, as they travel not only in the Tokai region, but throughout Japan

The successes achieved this year have blossomed and attracted new fans from not just at home in Japan, but from all over the world- including the Cyclocross homeland of Europe and specifically the 2020 Cyclocross World Championship

The SimWorks racing team rarely has a day to rest while they train, even during wind, rain and snow- growing like sturdy plants with attention and care. The passions and input of our riders has culminated in a variety of stories not only from the race circuits but also in the adventures of their training rides. The machines have weathered and evolved alongside their operators.

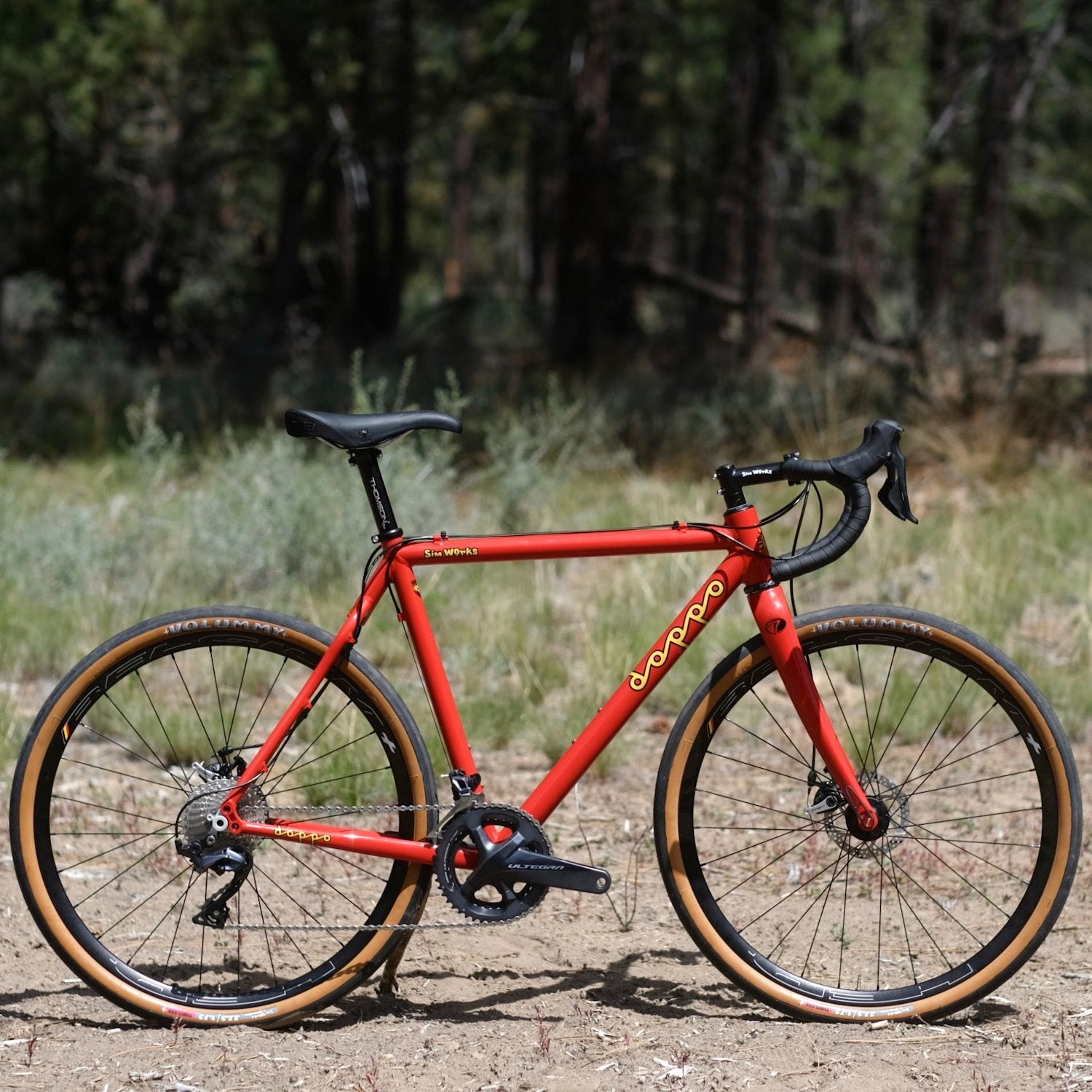

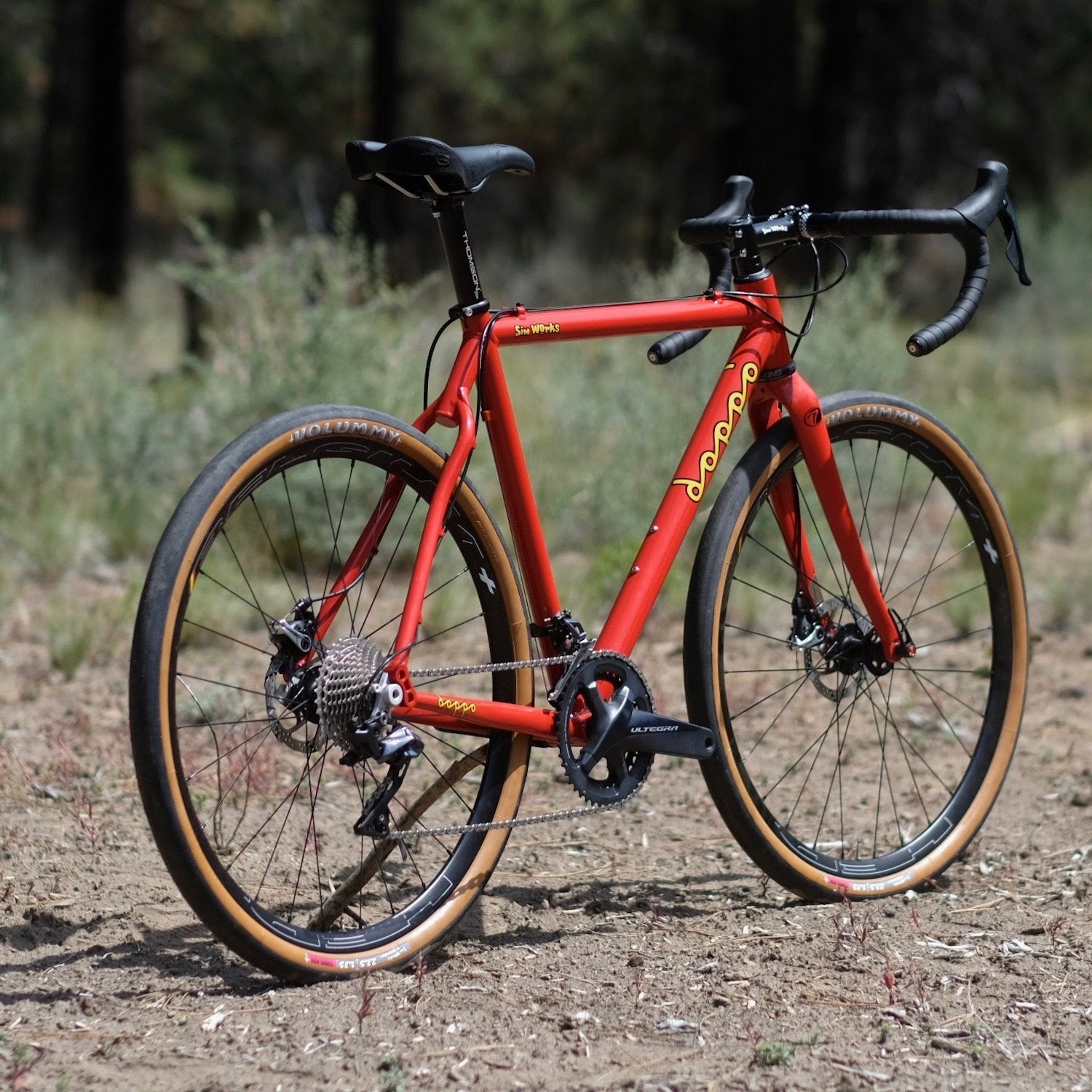

The Doppo RACER SimWorks Racing Team Model, which has been traveling with our team, will now be available in limited quantities.

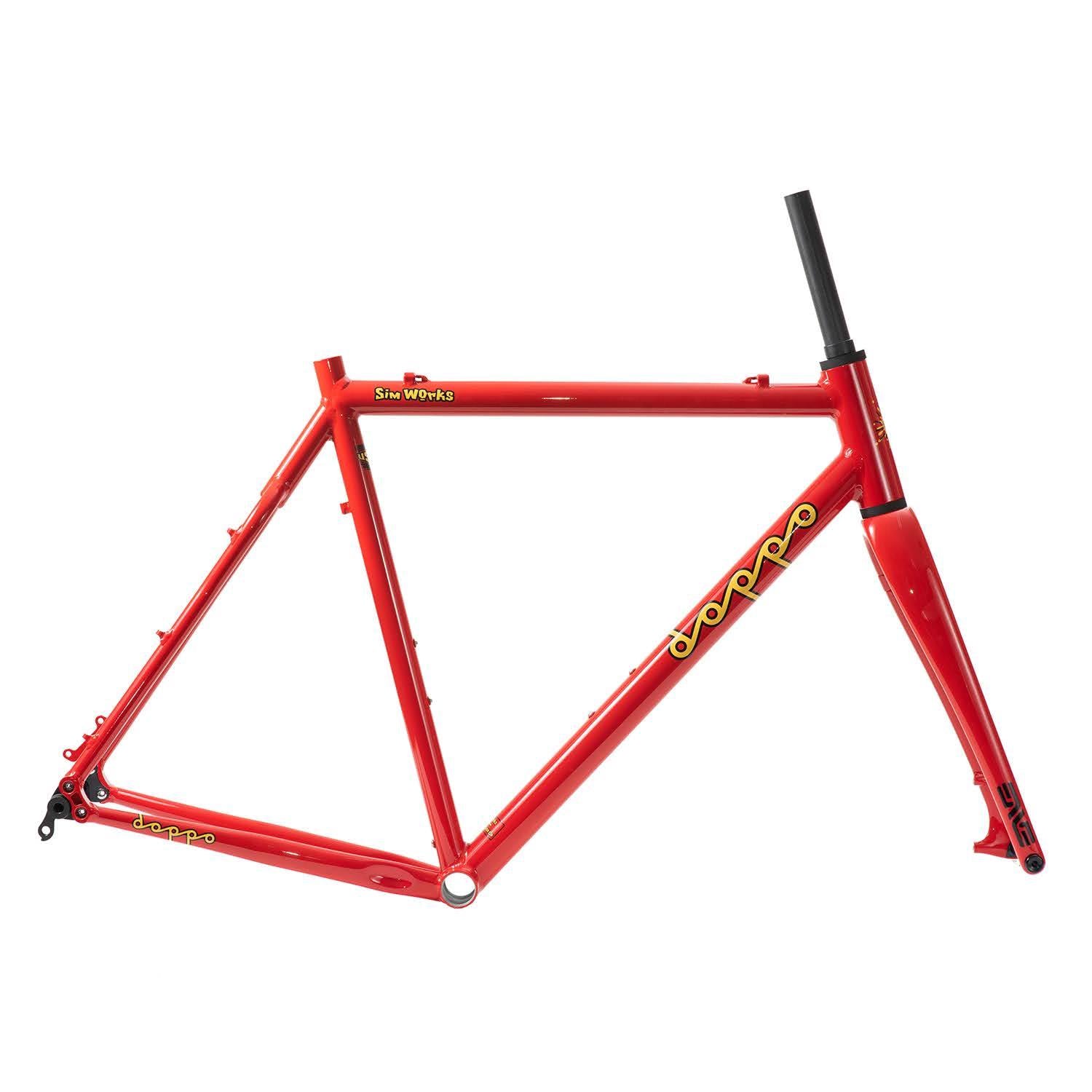

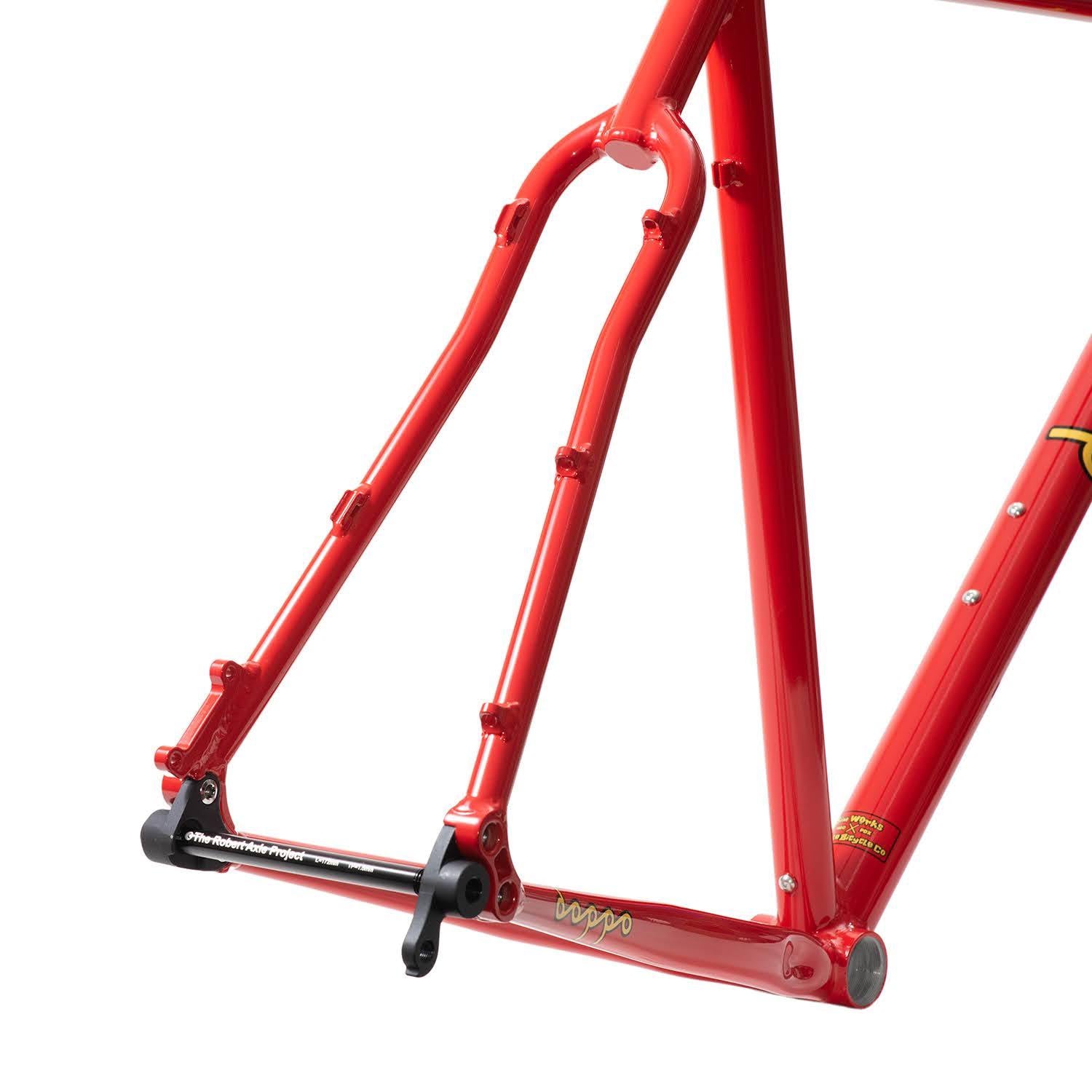

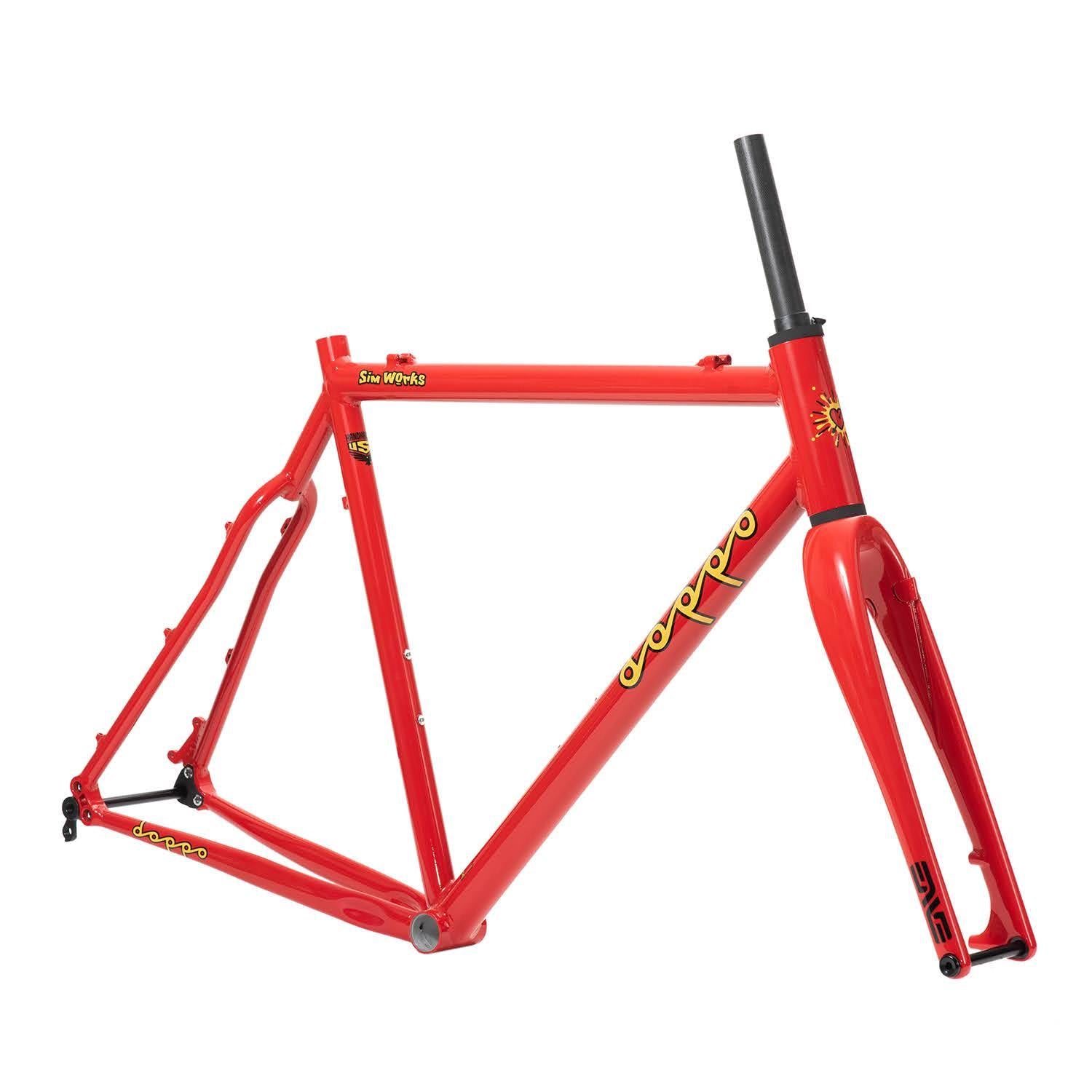

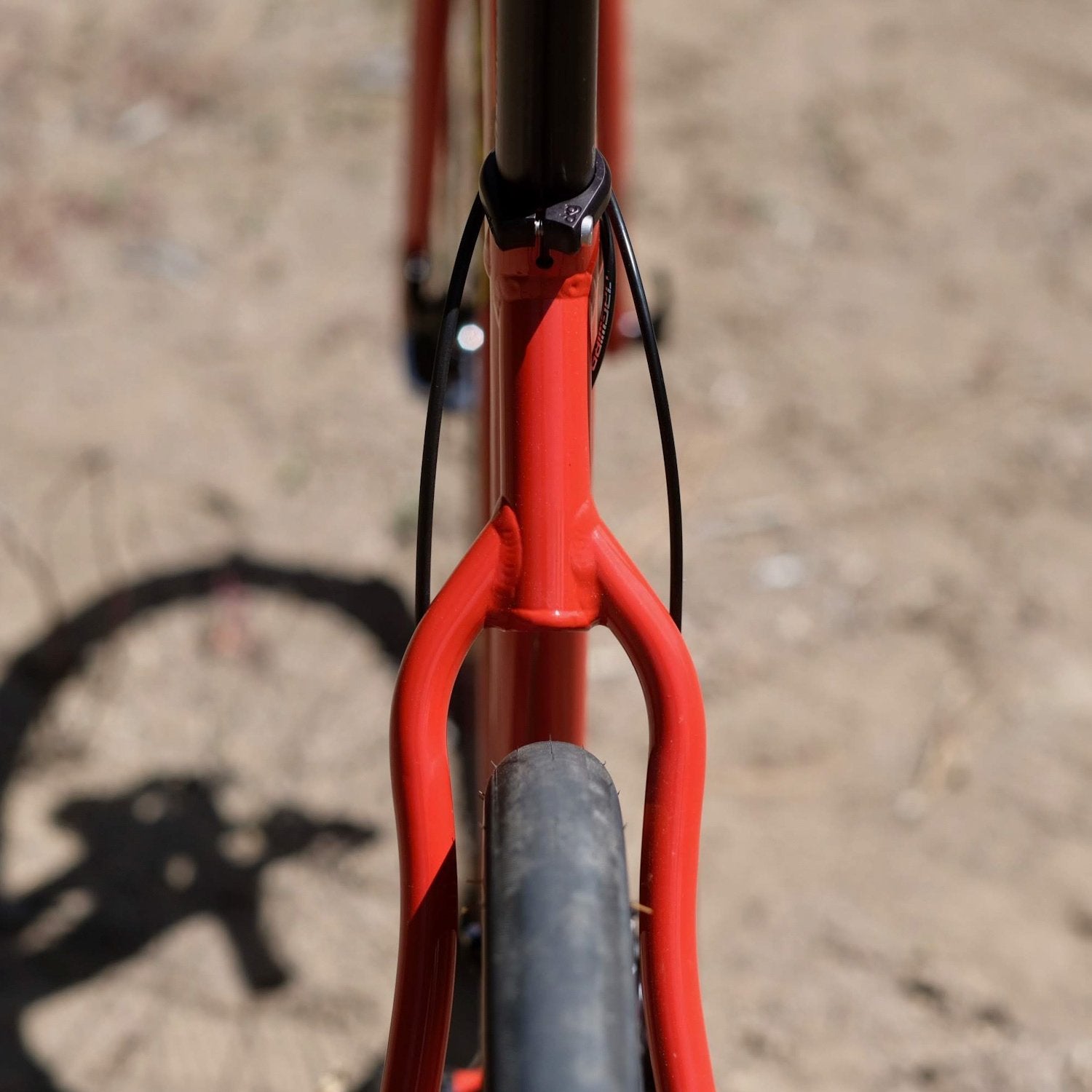

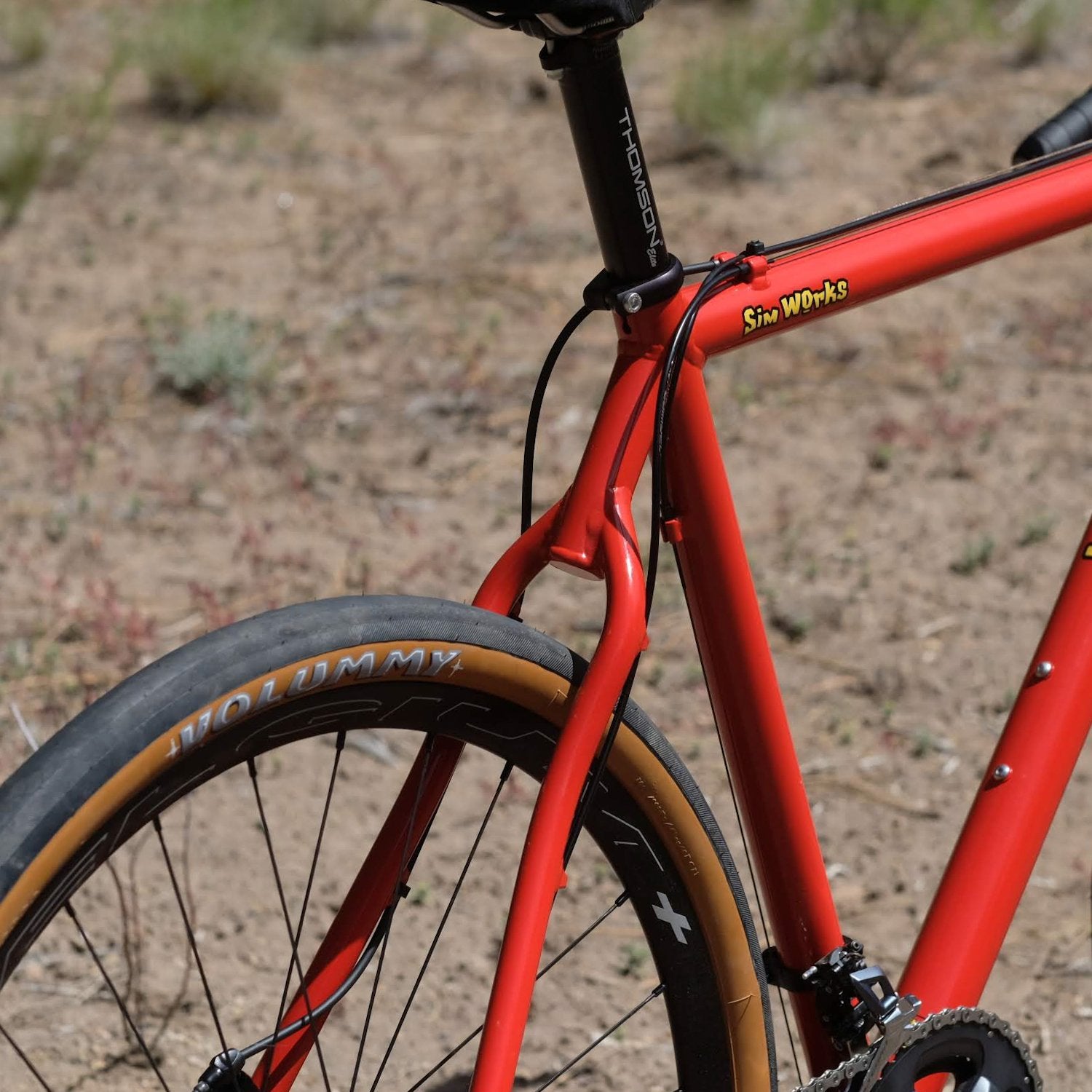

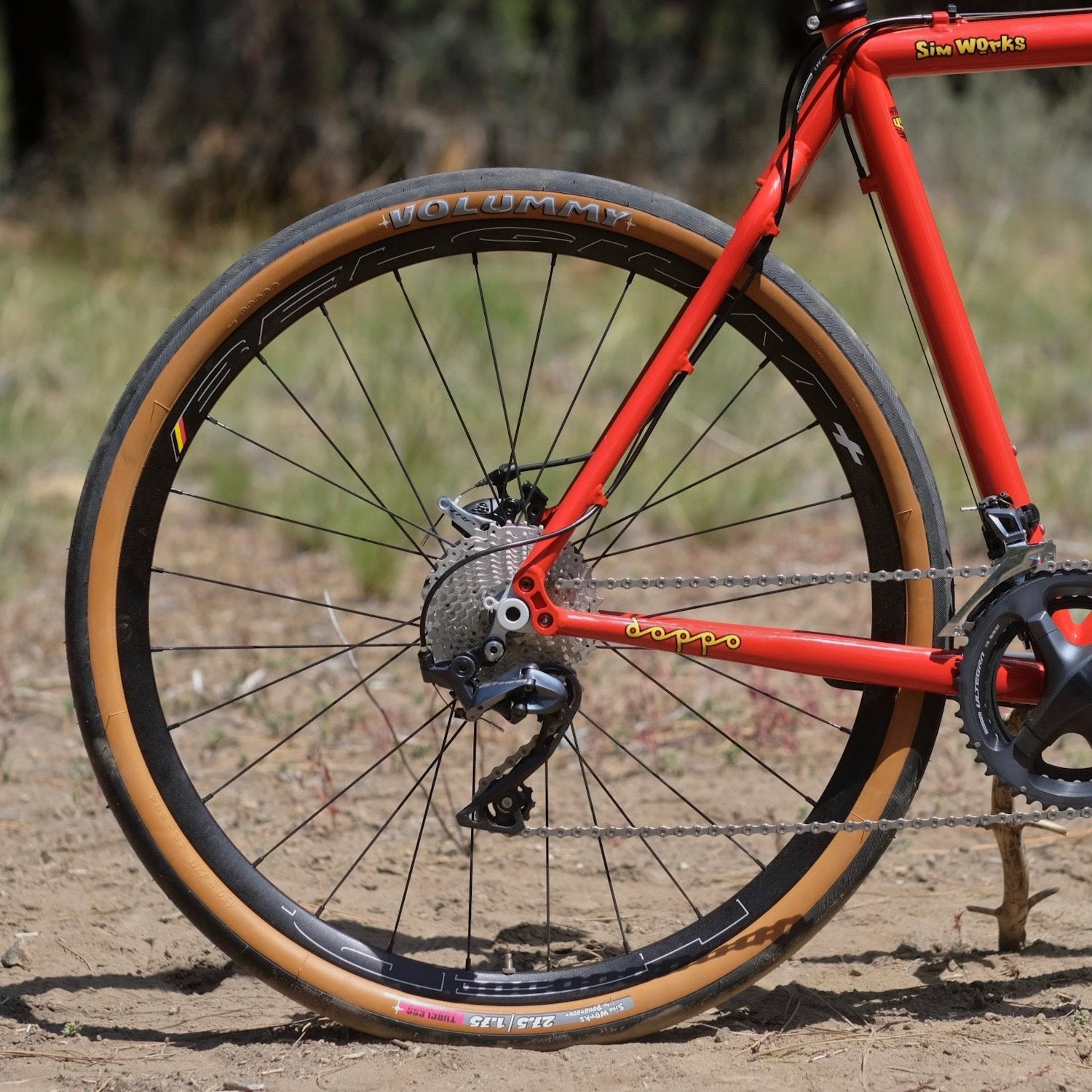

The frame utilizes 7075 series aluminum tubing from the trusted American maker NOVA, and the selection of thicker tubes that combine rigidity and strength with an American frame and the unique shape of the monostay attract attention.

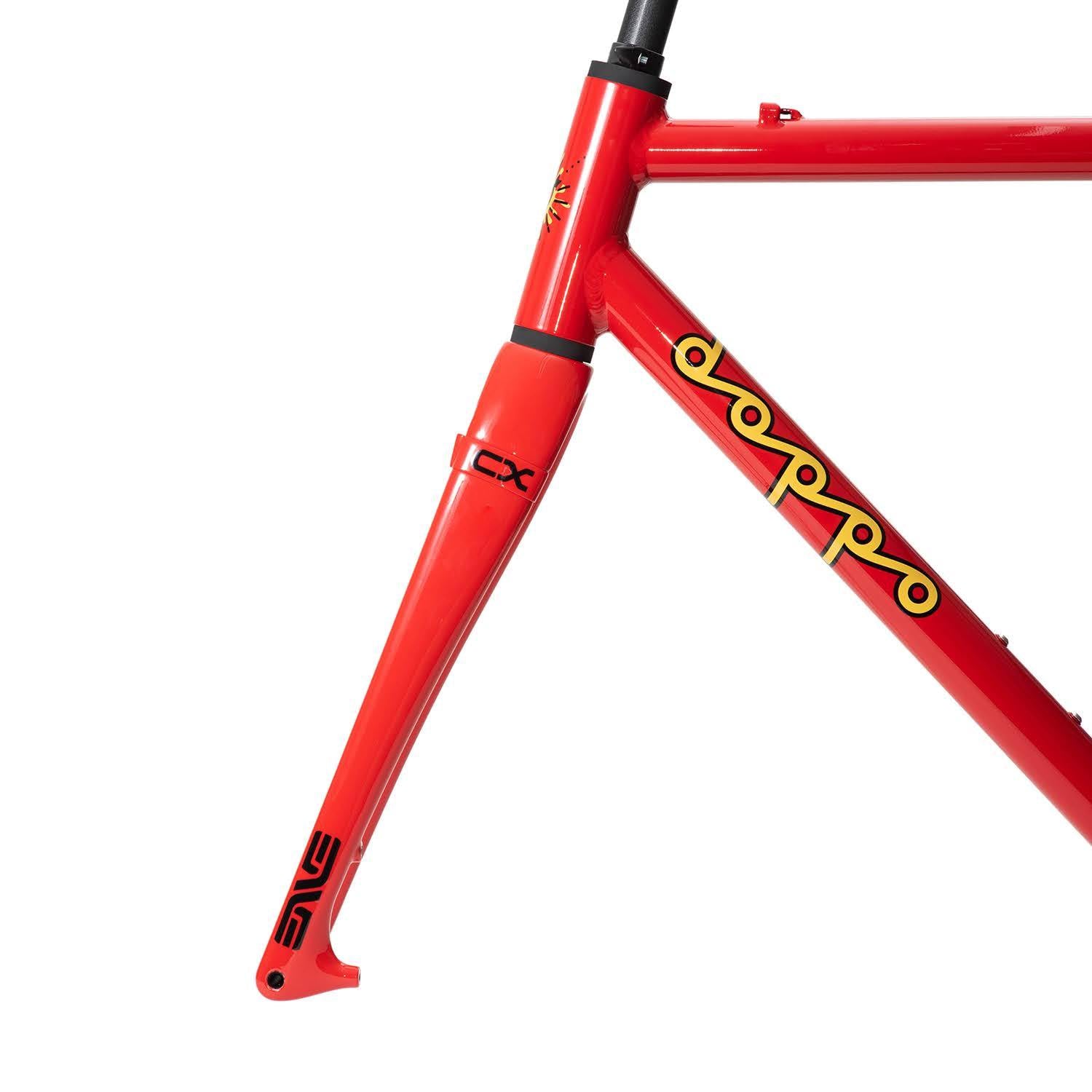

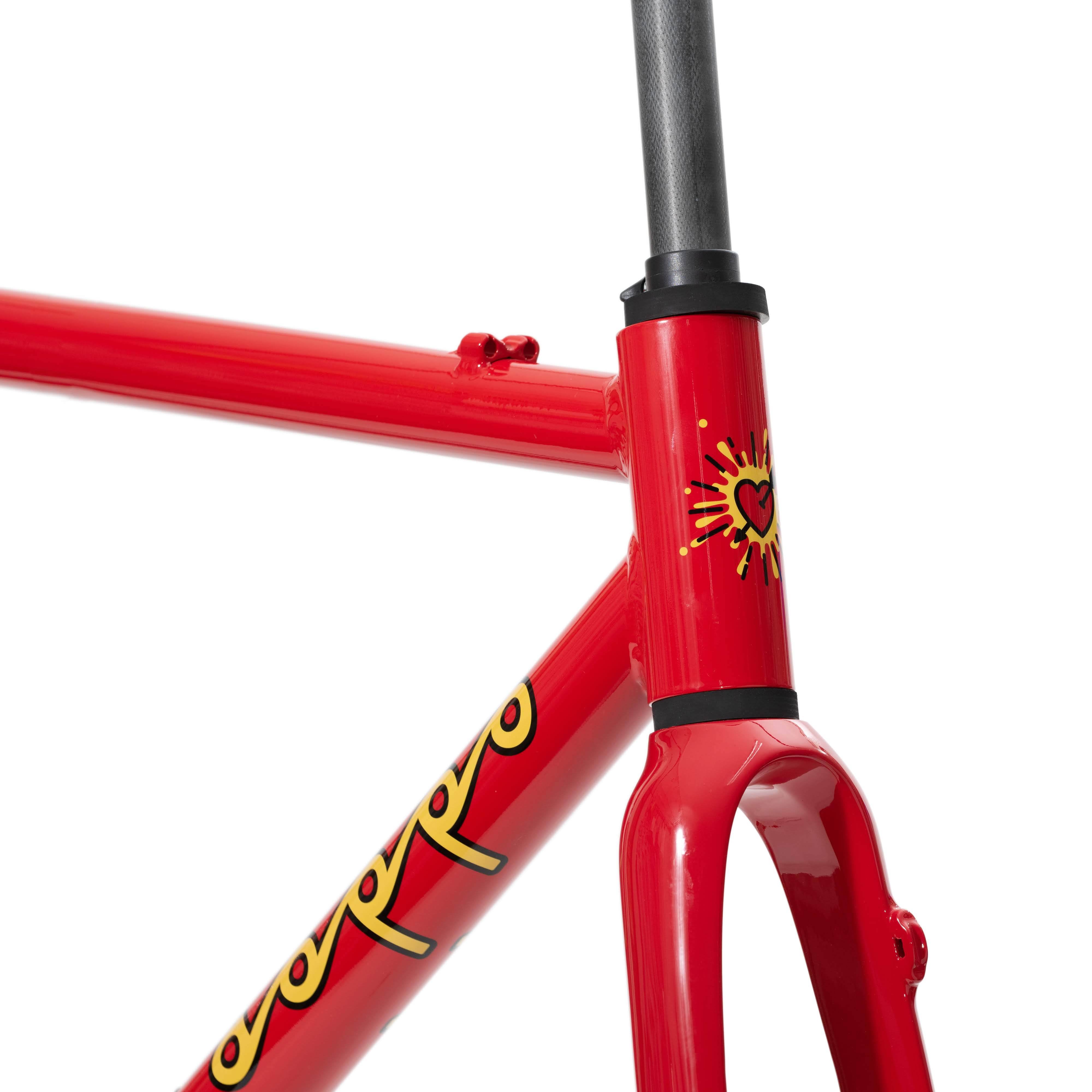

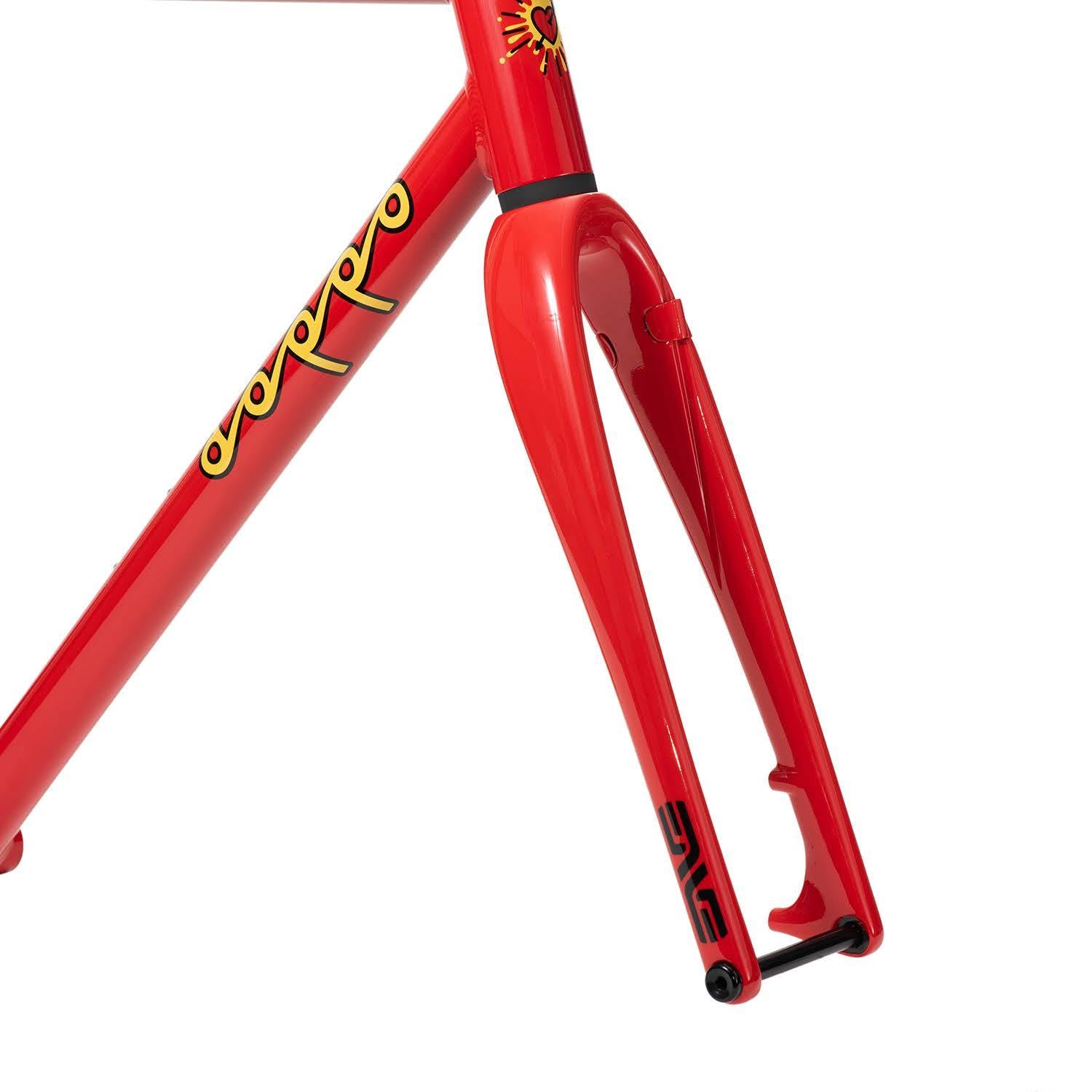

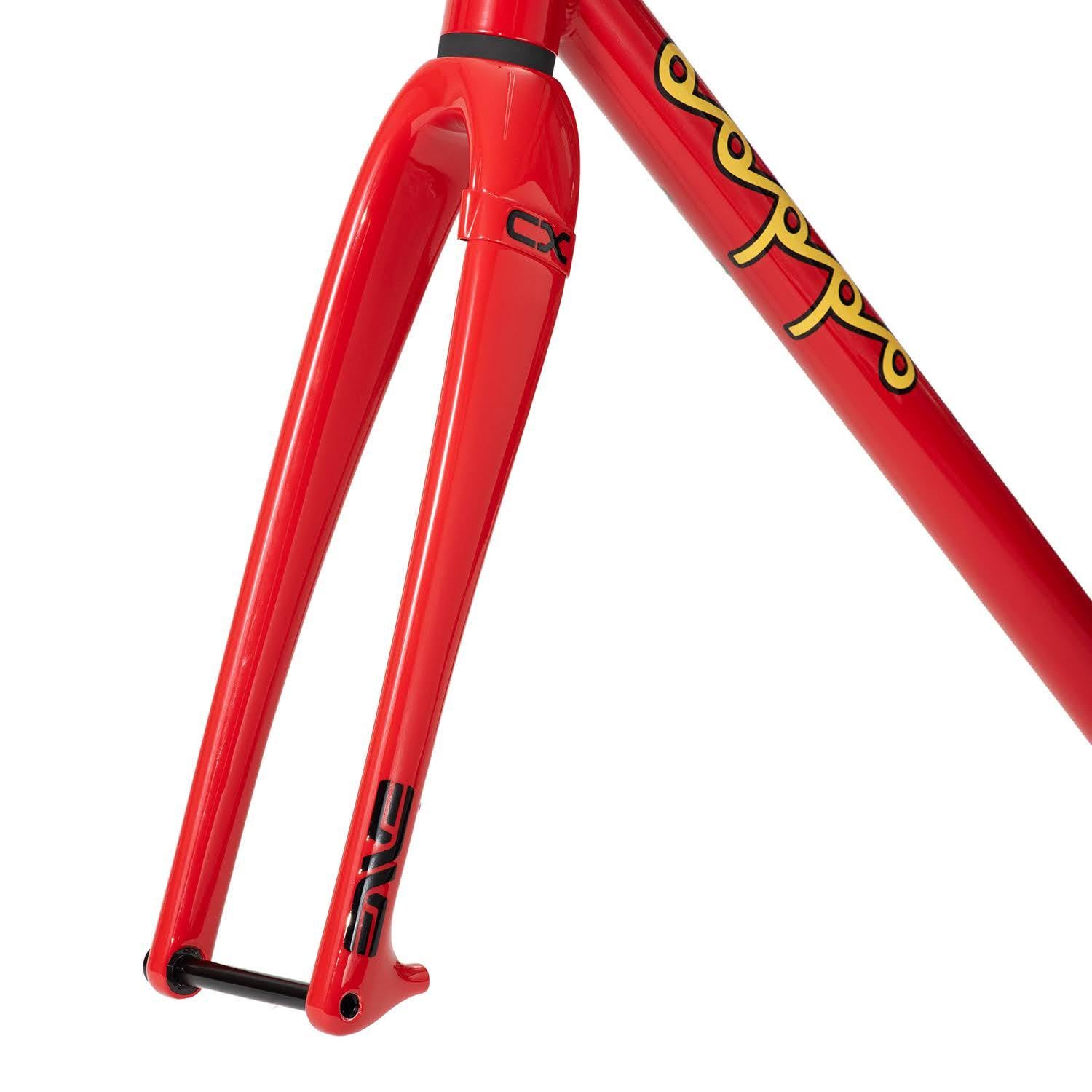

A carbon fork manufactured by Whiskey & Co., a house brand under Quality Bicycle Products, which has been gaining increased popularity in recent years, is included with matching paint. Both frame and fork utilize thru-axles.

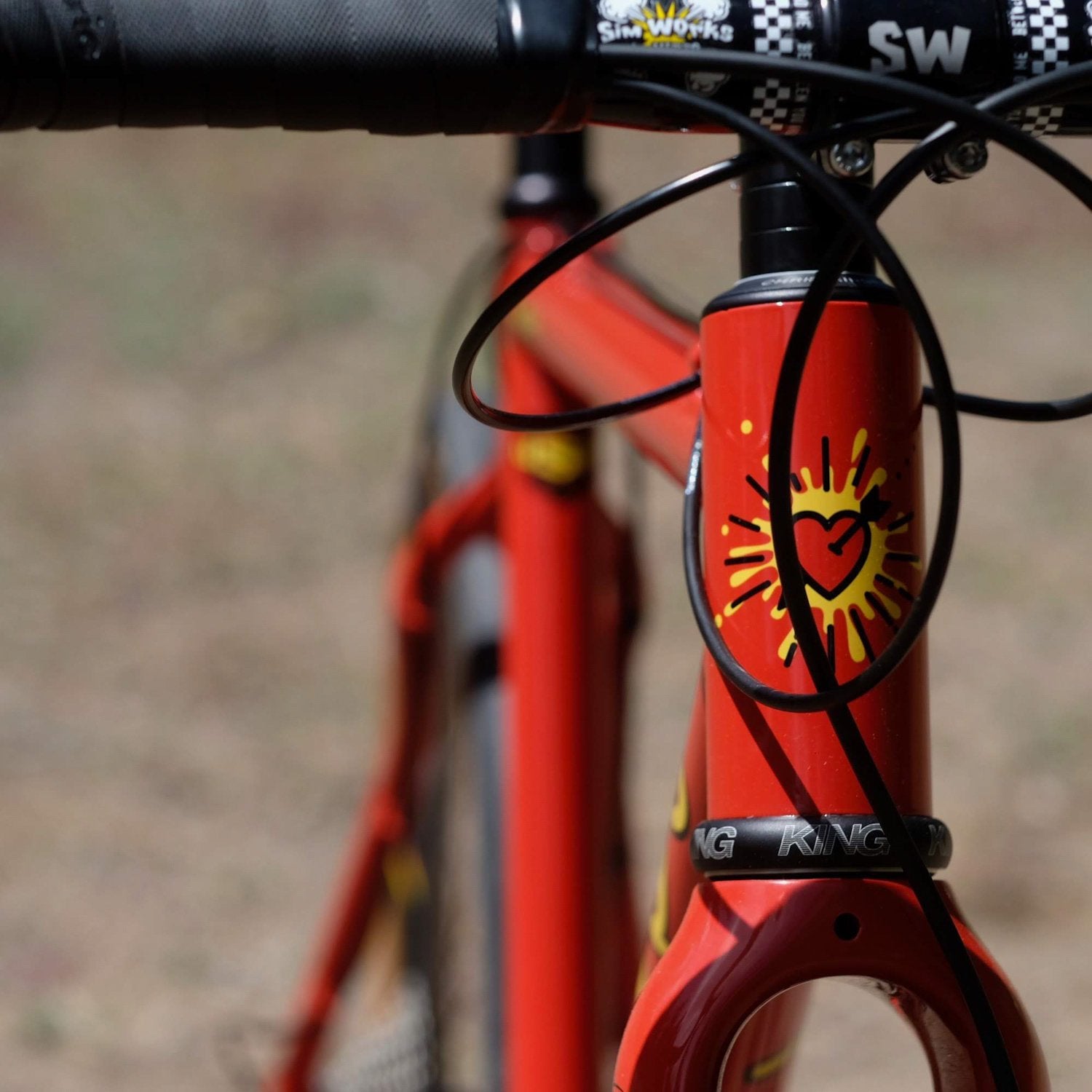

A 160mm disc rotor is recommended to be used on both frame and fork. Rounding out the frameset package is an included Chris King InSet 7, available in the color of your choice (*Please see the color image on the bottom of this page and leave a note what color of Chris King InSet 7, or we'll contact you for your order.).

Whatever the season, in any situation, why not use the finest handmade frame, the Doppo, as a lifelong companion?

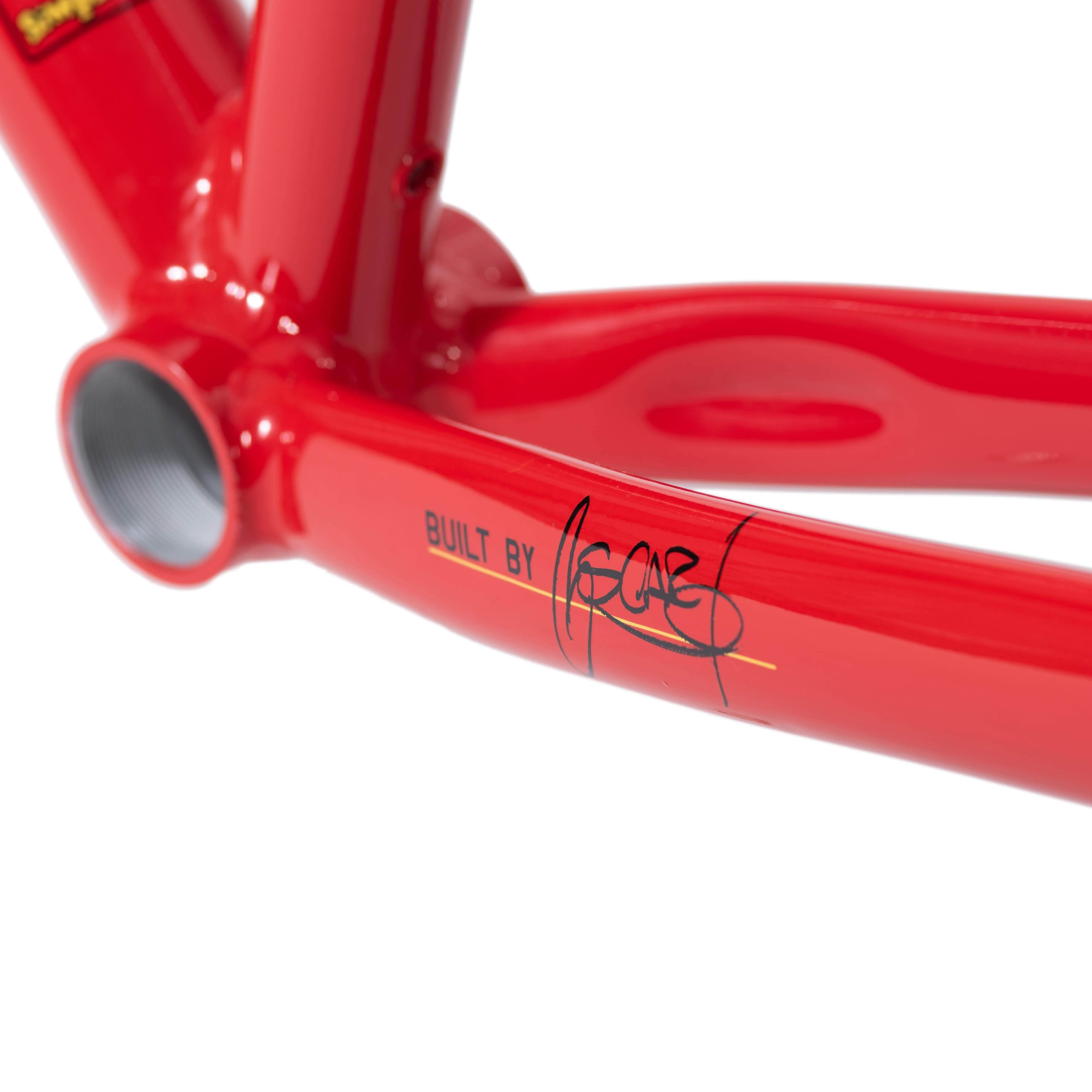

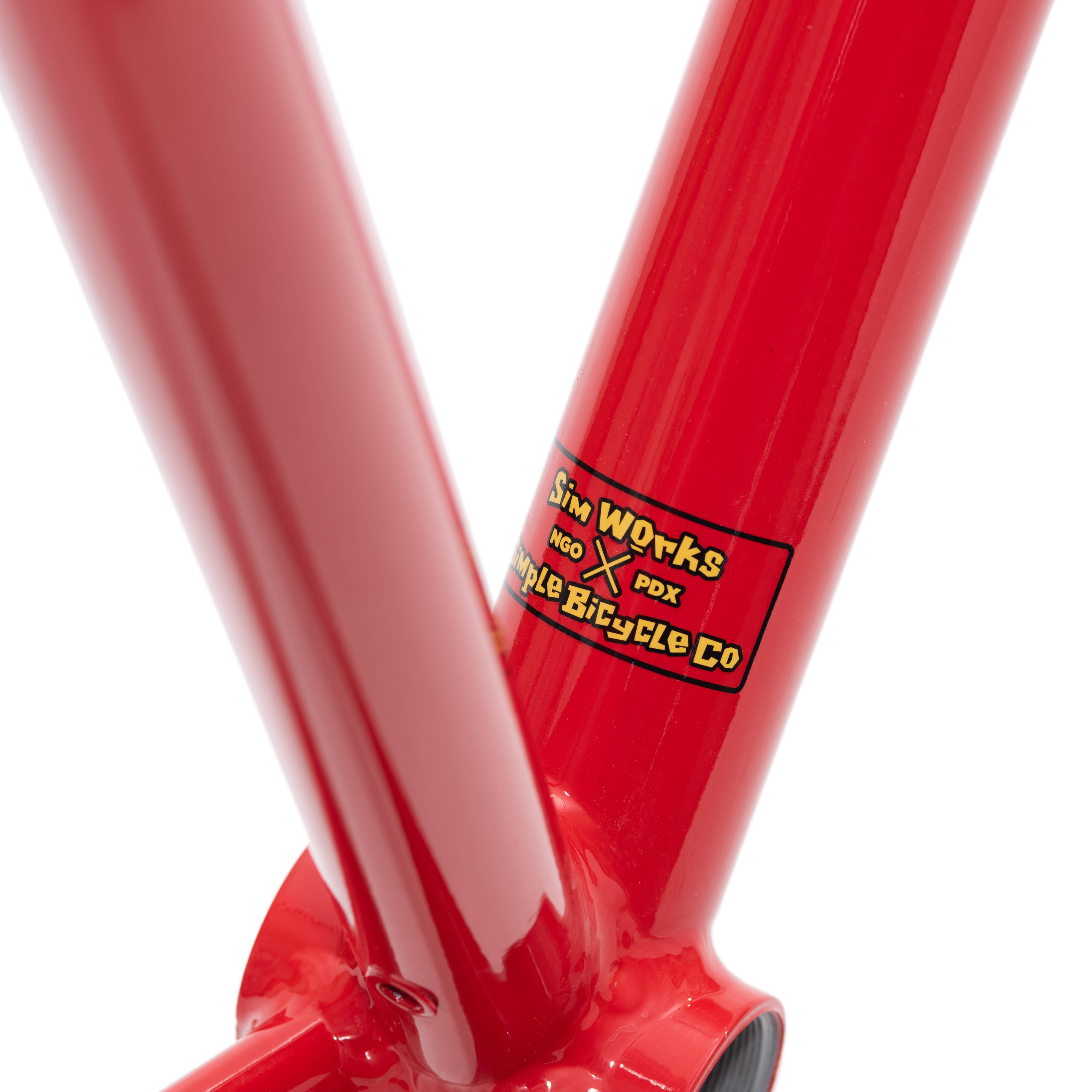

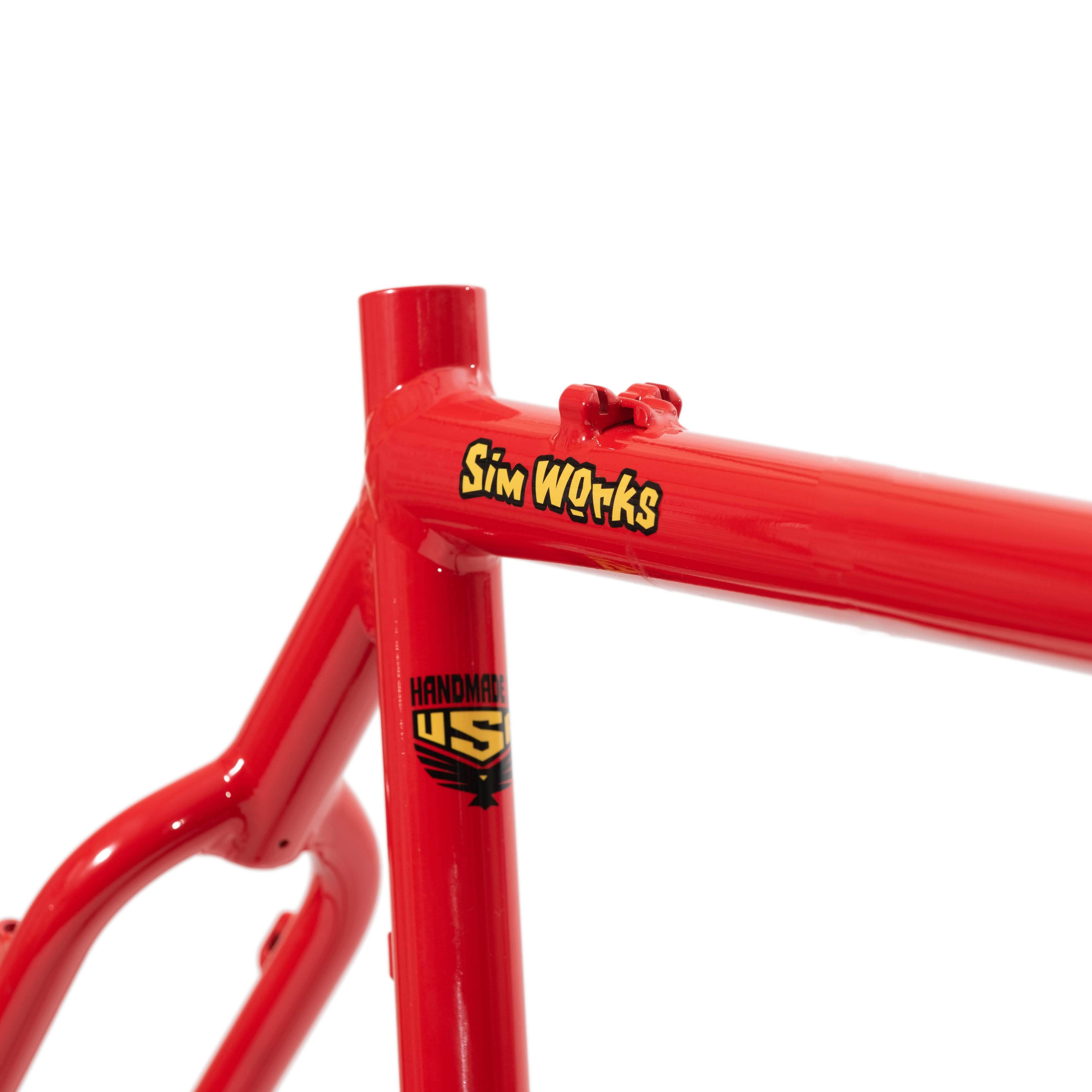

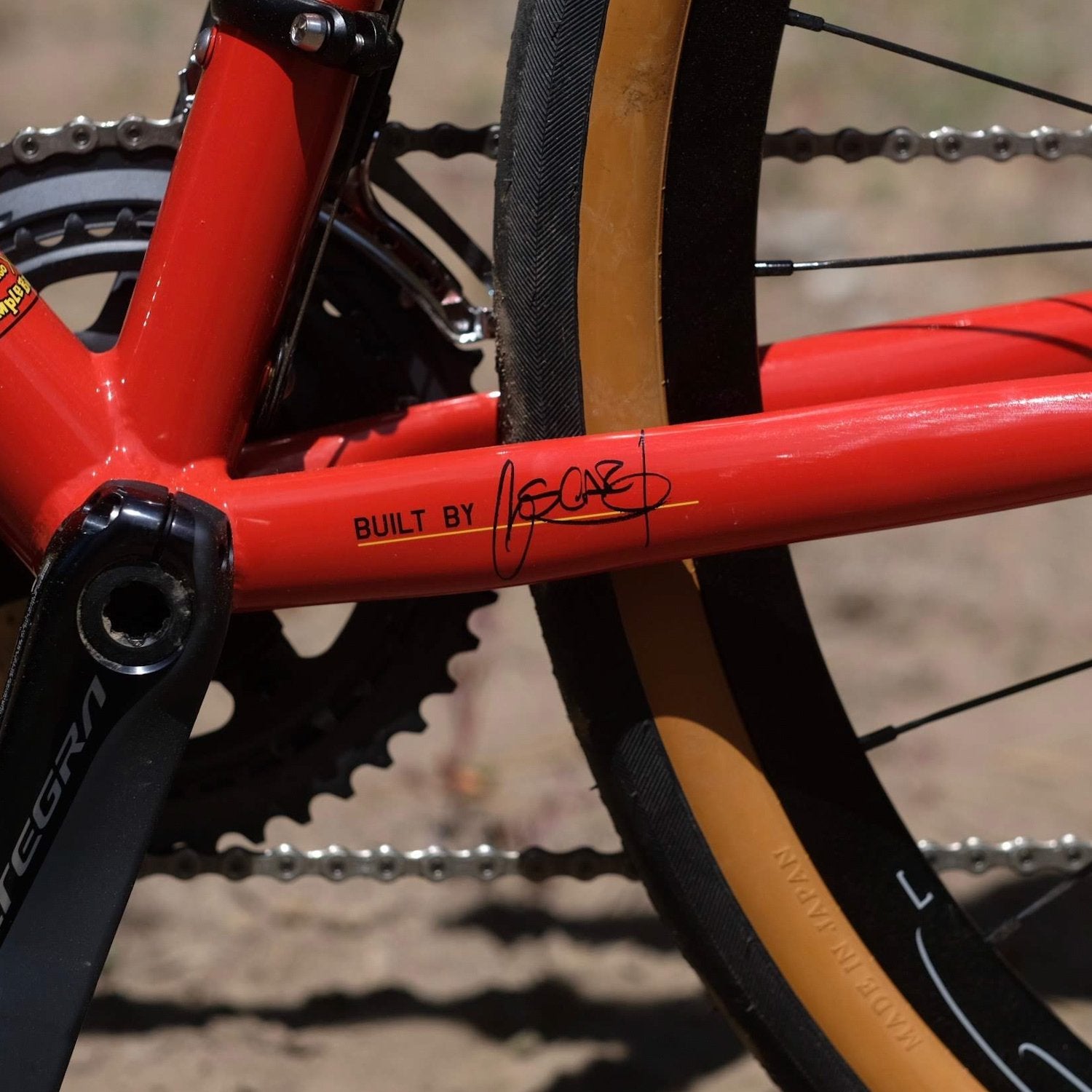

Production was commissioned to Oscar Camarena, of Simple Bicycles and formerly of Chris King’s Cielo badge name. Each frame was carefully crafted with the finest welding techniques. Despite aluminum often being considered more difficult than welding chromoly, the attention to detail and the beautiful welding bead show through on these metallurgical marvels.


Don't miss this special offer in limited quantity- an opportunity that won’t come around again.



【SIZE CHART】





52cm

54cm

Seat Tube Length (mm)

520

540

Top Tube Length(effective) (mm)

535

551

Reach (mm)

379

383

Stack  (mm)

560

580

Standover (mm)

800

818

Head Tube angle (deg.)

70.5

70.5

Head Tube Length (mm)

129

150

Seat Tube angle (deg.)

74.0

73.5

Chin Stay Length (mm)

425

425

BB Drop (mm)

69

69

BB Height (mm)

290

290

Wheelbase (mm)

1026

1047

Fork Length  (mm)

395

395

Fork Offset (mm)

47

47



Main Specifications
NOVA 7075 aluminum tubing

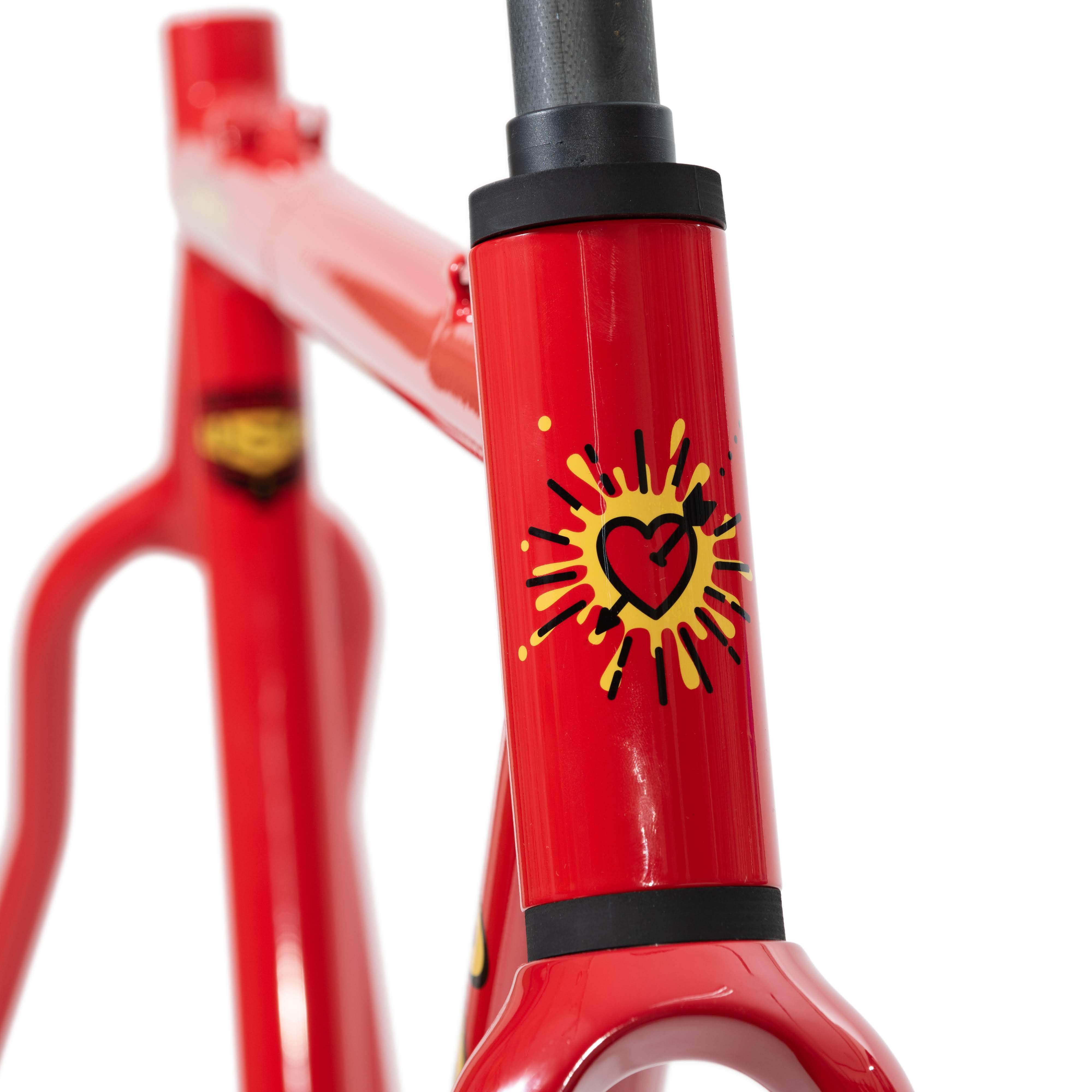

44mm head tube
Includes Chris King InSet 7 (color option)
Light and strong TIG welding
Includes Whiskey & Co. carbon fork
Can be used up to 160mm disk rotor
Front brake mount: Flat mount

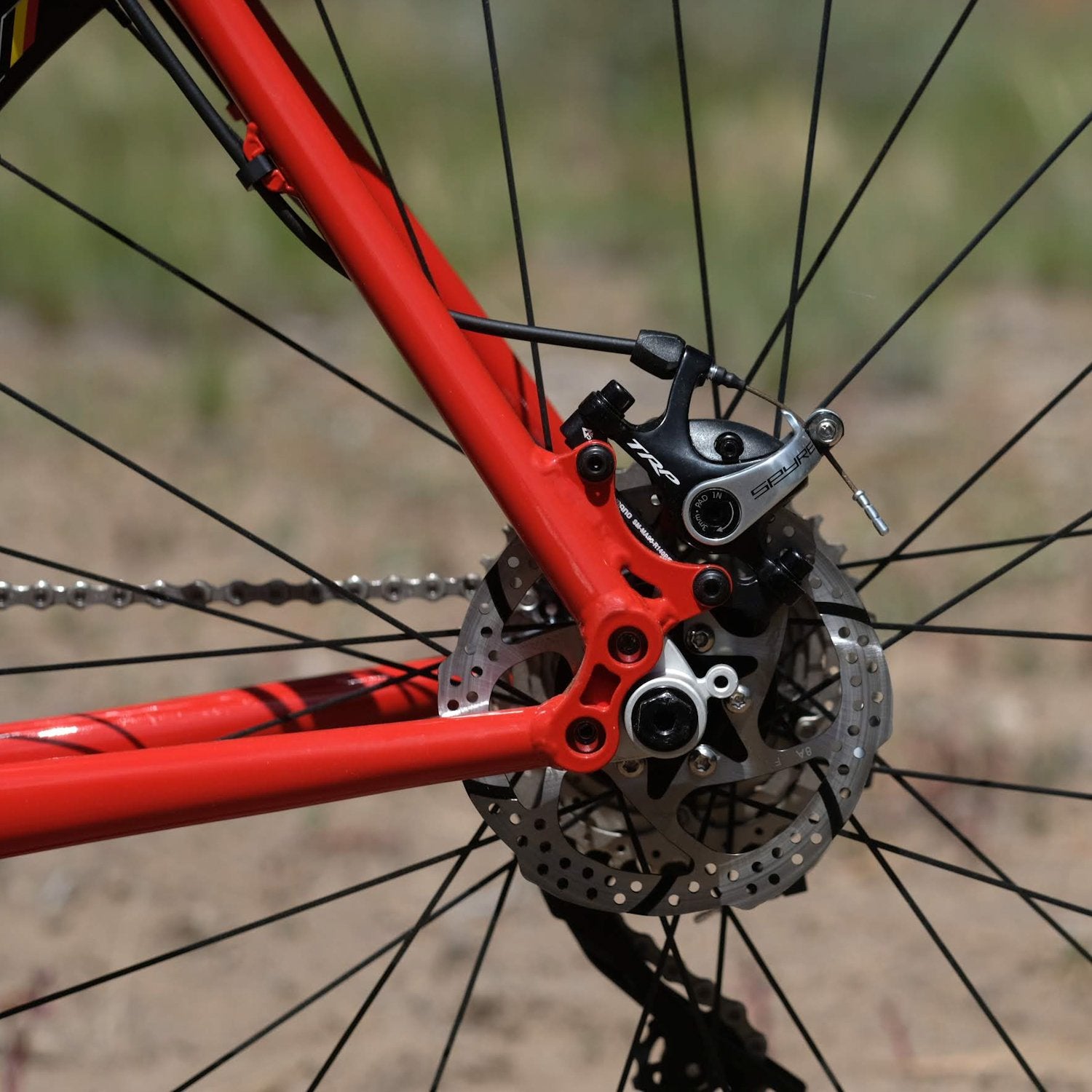

Rear brake mount: ISO

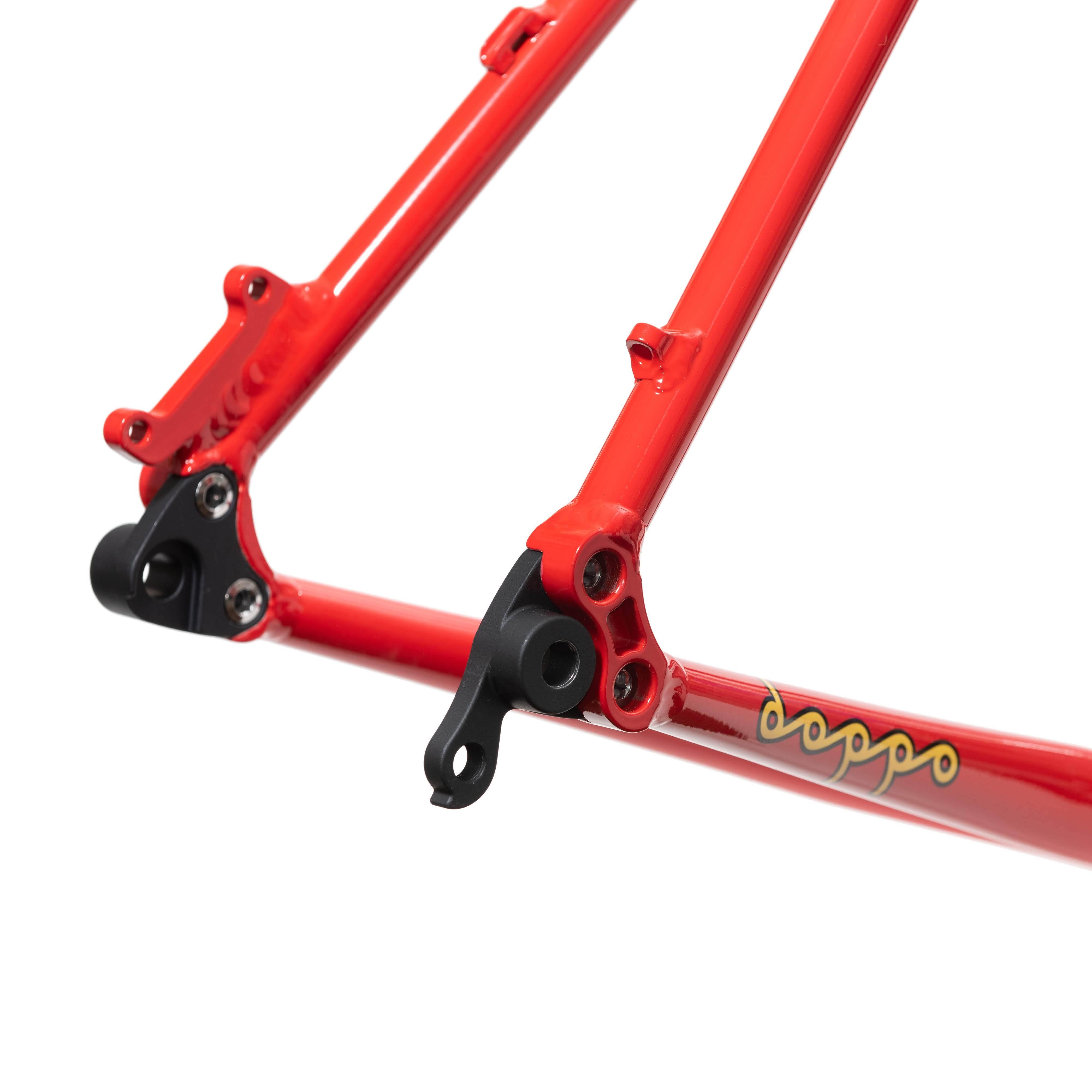

Thru axle front 12x100 / rear 12x142
Max tire clearance: 700c x 45mm / 650b x 50mm
Seatpost size: 27.2mm
68mm JIS Threaded BB Shell
Seat clamp size: 31.8mm
Can be used for both front single and double chainring
2 bottle eyelets

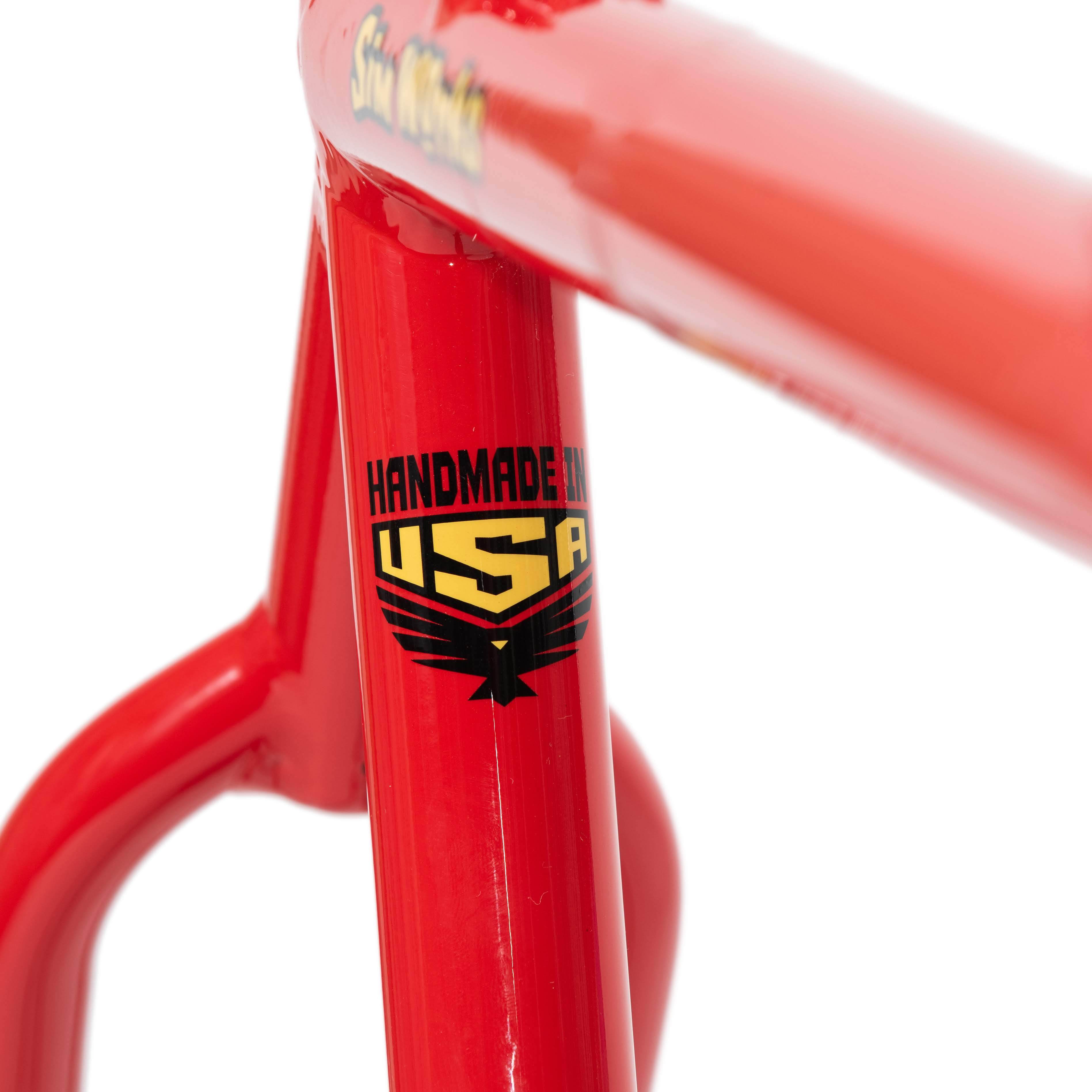

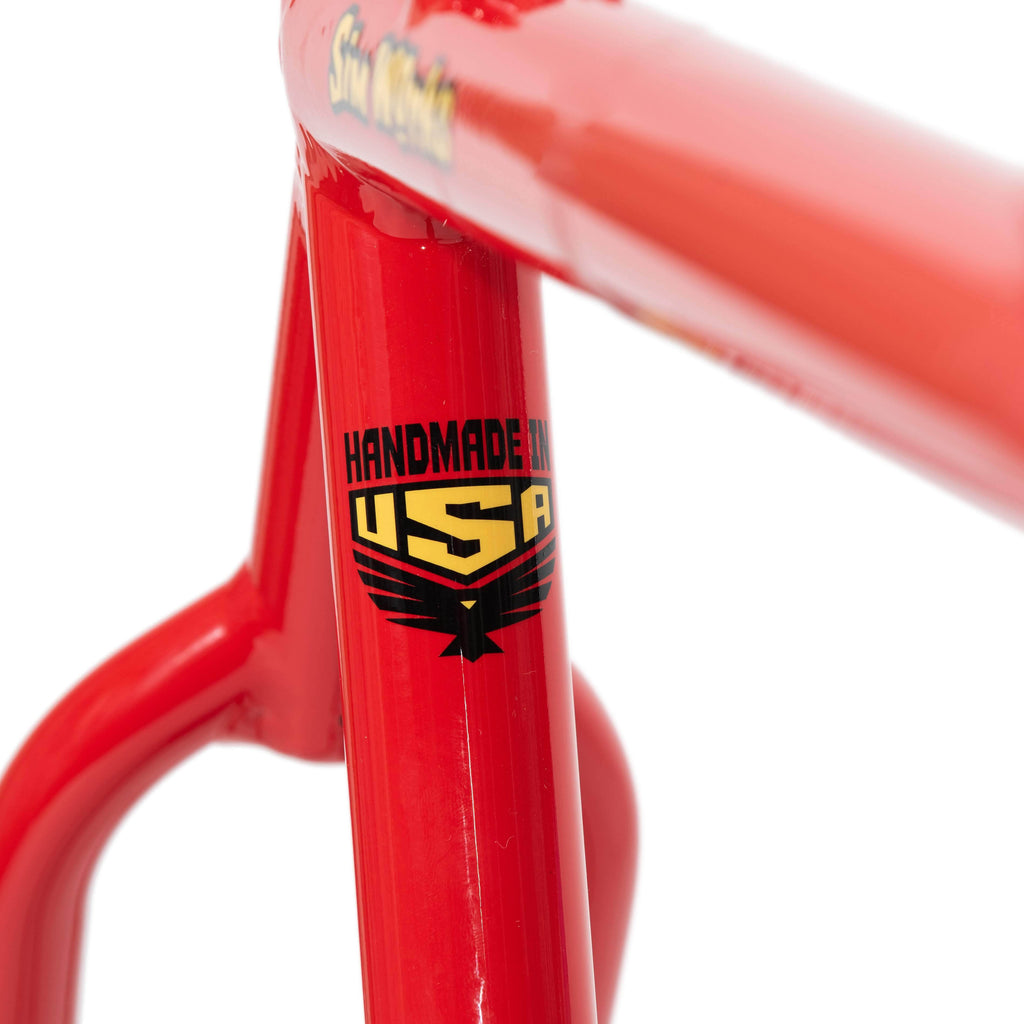

Made in U.S.A frame
15% off with Chris King Custom Wheel Set order
